Product Details

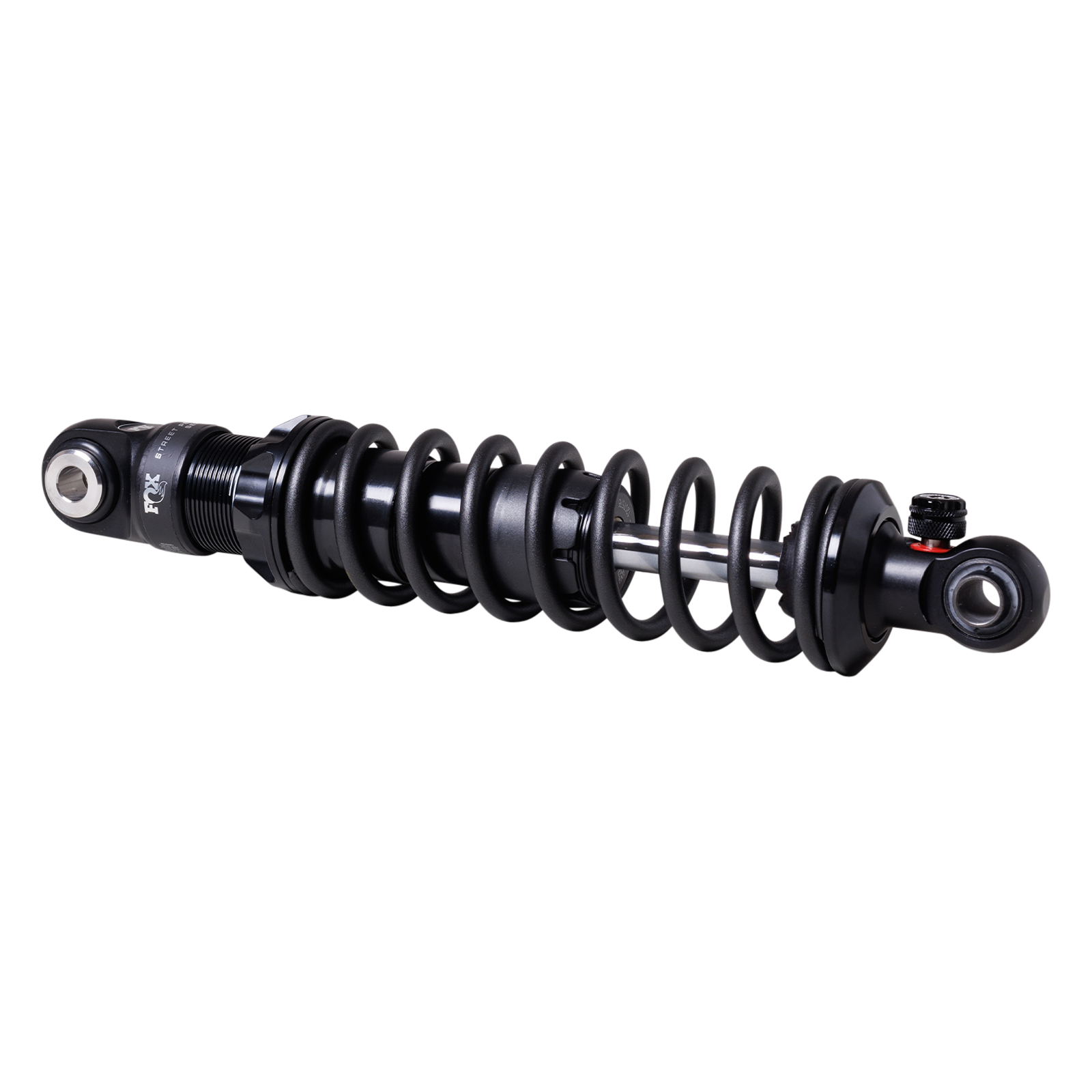

FOX IFP-R Adjustable Rear Shocks for Harley Sportster — Street Performance
Upgrade your Harley Sportster suspension with FOX IFP-R V-Twin rear shocks. The Internal Floating Piston (IFP) separates nitrogen gas from the shock oil to maintain consistent damping control over long rides. A wide-range 12-position internal rebound lets you precisely tune rebound to match spring preload, keeping the rear wheel planted and improving stability and comfort.

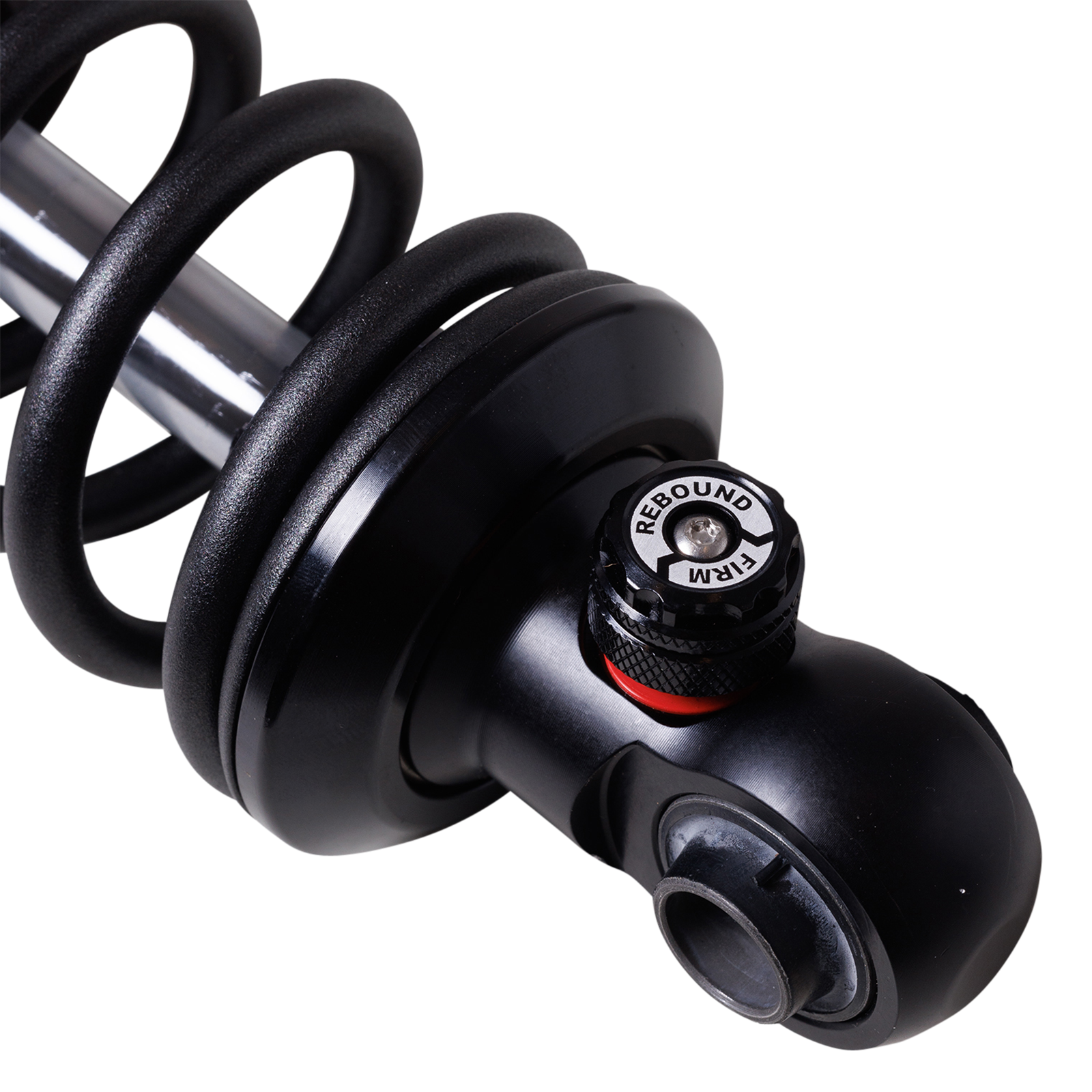

- Precise rebound control: 12-position adjustable rebound for fine tuning ride feel and handling.
- Consistent damping: IFP design isolates gas from oil so damping remains stable ride after ride.
- Vehicle-specific tuning: Model-specific optimized ride tune with linear spring rates for confident connection to the road.
- Durable, serviceable construction: 1.5" 6061‑T6 aluminum Type III hard‑anodized body, fully rebuildable and revalvable.
- Advanced valving: High‑flow, deflective disc velocity‑sensitive damping for controlled absorption of bumps.
- Quality hardware: 5/8" low‑friction, super‑finished hard chrome shaft; matte black spring and black anodized preload ring.
- Series & spring: Street Performance series. Standard spring — recommended for rider weight up to 240 lb.
Key specifications
- 12-position adjustable rebound
- Spring preload setting guide marks
- Gas‑charged mono‑tube with Internal Floating Piston (IFP)
- 1.5‑inch 6061‑T6 aluminum Type III hard anodized body
- Advanced high‑flow deflective disc velocity‑sensitive damping
- 5/8‑inch low friction, super‑finished hard chrome shaft
- Fully rebuildable and revalvable
- Model-specific optimized ride tune

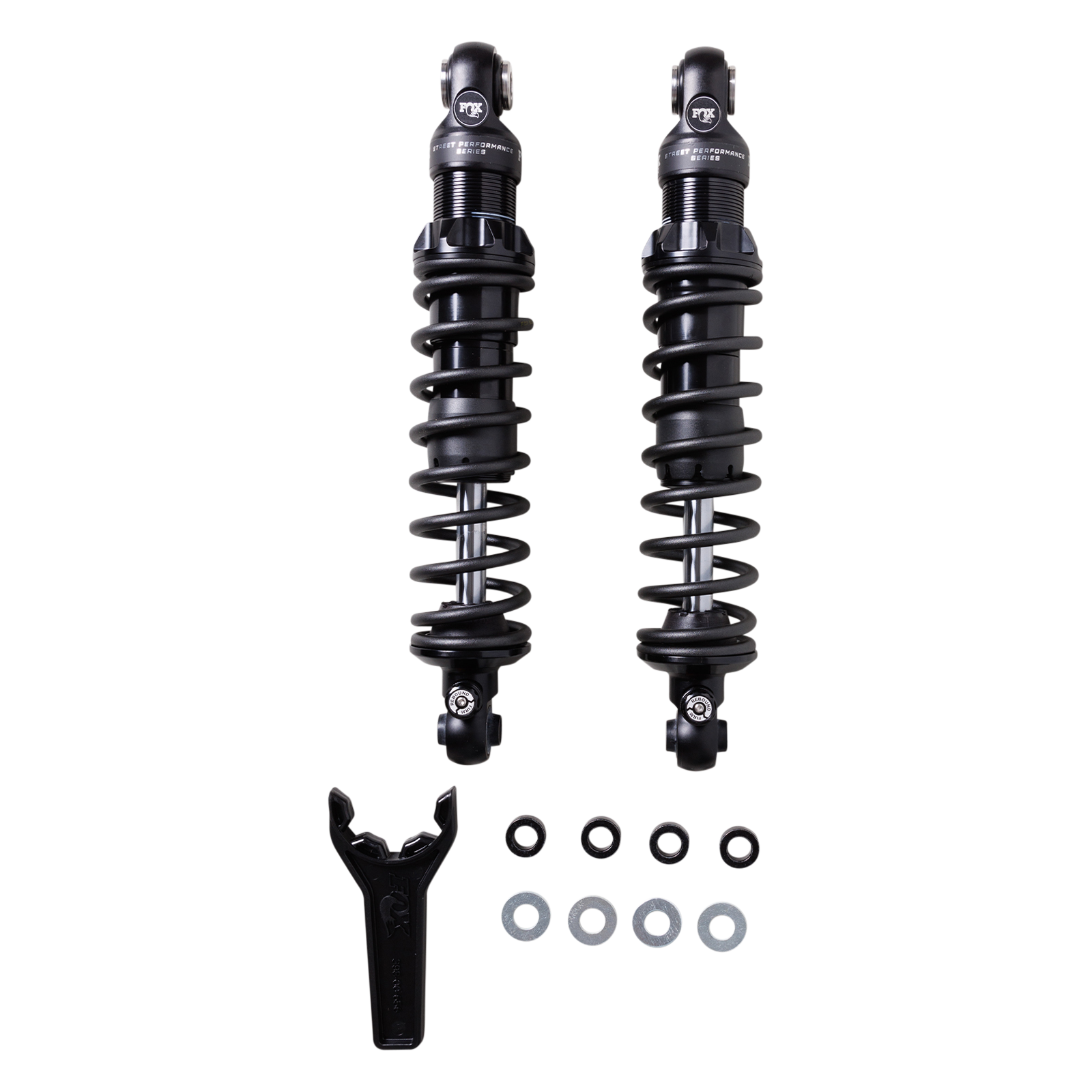

What’s included
- 2 shocks
- Spring preload spanner wrench
- Alignment kit
- Instructions and user manual
Ride with control and comfort — twelve clicks to custom rebound. Boost your Sportster's rear suspension with FOX IFP-R Rear Shocks. See the Fitment tab below to confirm compatibility and order now.
