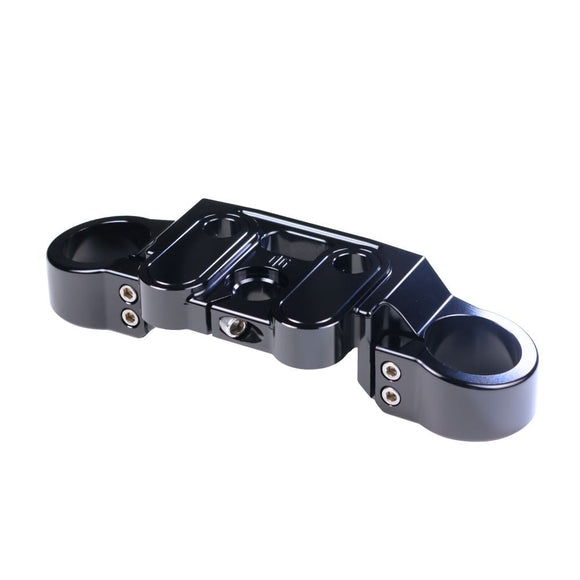

OG 2020-Up Softail Lowrider S & ST Drop 1" Top Triple Tree

The OG 2020-Up Softail Lowrider S & ST Drop 1" Top Triple Tree is designed for riders who want precise control over their handlebar position and a more aggressive performance stance on Harley-Davidson Softail Lowrider S and ST models. This top triple tree offers three riser mounting locations—stock, +1" and +2" pullback toward the rider—so you can set your risers exactly where you want them. +1" adapters are sold separately.

This top triple tree uses OEM M8 Softail riser bushings (sold separately), allowing you to choose between solid or polyurethane bushing options. It also allows you to lower your fork tubes in the clamps by up to 1", which raises overall bike height and improves ground clearance. This setup is an excellent option for those chasing a more aggressive stance and works especially well with longer 13.5" and 14" rear shocks.

For a clean, factory-style finish, the OG Drop 1" Top Triple Tree features integrated wire management clamps on both sides and is available in all colors, including chrome finishes.

Features

• 1" drop feature for performance-oriented front-end geometry
• Precision CNC machined from 6061 T6 aluminum
• Designed to match the OEM rake angle and triple tree offset for straightforward installation and optimized performance
• Improved structural rigidity over stock components
• Hard anodized finish and chrome finish options
• Machined OG logo for a premium look
• Uses standard M8 Softail riser bushings (solid or polyurethane options, sold separately)
• Stainless steel hardware included
• Includes two wire management clamps, one on each side, for clean cable routing
• Innovative reversible riser mounting block provides three riser positions: stock, +1" or +2" pullback toward the rider (+1" adapters sold separately)

Fitment

• Fits all 2020–present Softail Lowrider S (FXLRS) and ST (FXLRST) models equipped with the OEM inverted front end
• Will not fit the Softail Lowrider S (FXLRS) stock headlight fairing
• Depending on the height of your risers, cable or harness extensions may be required, especially when using the +2" pullback mounting location
• The unique fork geometry of the 2020–2021 FXLRS models limits the achievable drop to 3/4"

*If your motorcycle is equipped with a T-Sport Fairing, you will need the T-Sport Fairing Mounting Kit for OG 2020-Up Softail Lowrider S & ST Top Triple Trees in order to run your T-Sport Fairing with the OG Top Triple Tree.
